How does an adjustable bed base work?

An adjustable bed base is the core component of an adjustable bed, a system designed to change its shape to support various sleeping and reclining postures. Unlike traditional static bed frames, an adjustable base incorporates electric motors and articulated sections. These mechanisms allow you to elevate the head, legs, or other parts of the mattress using a remote control.

This guide will delve into the workings of adjustable bed bases, explore different designs and features, and illustrate how they can enhance your sleep comfort and overall posture.

Table of contents

1. What is an adjustable bed base?

An adjustable bed base, sometimes referred to as an electric adjustable bed frame, is a specialised bed foundation. It is equipped with mechanical joints and electric motors that enable different sections of the bed to be raised or lowered. This functionality means you can customise your sleeping or resting position by, for example, elevating the head end for reading, lifting your legs to improve circulation, or adopting a seated position to watch television

The primary advantage of an adjustable base is the introduction of posture customisation, offering significantly more flexibility to find a comfortable and supportive position. These bases are increasingly popular in homes, not just healthcare settings, as they empower users to proactively improve their sleeping posture and comfort.

Modern adjustable beds are often designed to look like conventional beds but conceal sophisticated articulating mechanisms. When considering a new bed, an adjustable base can be a significant step towards better sleep quality.

2. How adjustable bed bases work

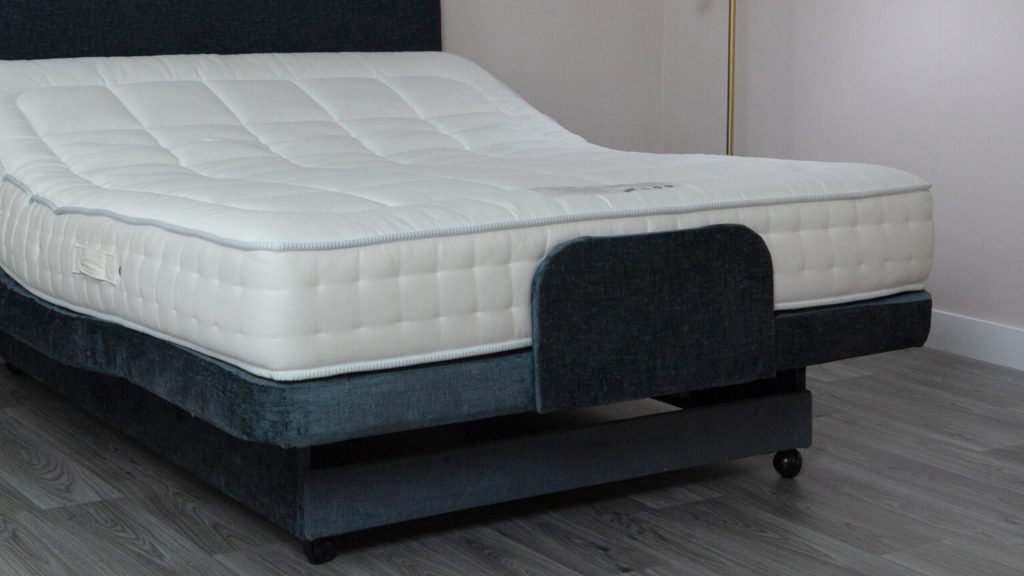

The fundamental operation of an adjustable bed base relies on a system of motorised joints. The base itself is constructed from several distinct sections, typically corresponding to the upper body, lower body, and sometimes an additional foot segment, all connected by hinges. Electric motors are attached at these hinge points to drive movement.

When a button is pressed on the remote control, these motors activate, rotating drive shafts or actuating levers that gently raise or lower the designated section of the bed frame. This articulation allows the initially flat bed to contour to the desired shape.

While designs vary, this principle of motor-driven adjustment is common to all. Key operational aspects include:

Multiple sections and joints

Basic models may feature a single motor and joint, usually at the hip area, to lift only the head portion. These are often termed “lifestyle beds,” suitable for simple relaxation or reading. More advanced adjustable bed bases incorporate multiple joints, such as at the knees and hips, each operated by its own motor.

These multi-section bases allow for independent adjustment of the head, upper body, and legs. The joints are strategically placed to align with the body’s natural bending points, ensuring the bed supports bodily contours in a healthy posture during adjustment.

Range of motion

With additional motors and segments, a premium adjustable base can achieve a wide array of positions. You could elevate your legs while keeping your back flat, or raise your upper body to a slight incline while also lifting your knees. Raising the feet and knees can benefit circulation, while head elevation can aid breathing and reduce issues like acid reflux.

Many bases also offer a “hi-low” function, allowing the entire bed frame to be raised or lowered vertically, assisting with getting in and out of bed, particularly for those with limited mobility.

Quiet electric motors

Adjustable beds typically use AC or DC electric motors. DC motors are common in home-use beds due to their ultra-quiet operation, allowing adjustments during the night without significantly disturbing a partner.

AC motors are often found in heavier-duty or hospital-grade beds as they can lift more weight continuously.

Quality motors operate smoothly, and better models feature insulated housings to minimise noise and vibration.

Sturdy frame and mechanics

The base frame is usually constructed from metal, such as steel or iron, for strength. The moving joints are engineered to securely hold the weight of the mattress and sleeper at any angle. Robust metal arms or actuator rods provide support when a section is raised.

A well-built base distributes weight evenly and includes safety features like emergency lowering in case of power outages and pinch-free designs to prevent anything from being caught in moving parts.

Power and safety

Adjustable bases plug into a standard mains outlet. Many include a battery backup or emergency lowering feature, allowing the bed to be returned to a flat position during a power cut – an important safety consideration.

The electrical components are generally very safe, often using a low-voltage transformer. Proper cord management and ensuring clearance for the mechanism are also important.

How does an Adjustamatic bed base work?

Adjustamatic’s adjustable bed bases are handcrafted with high-quality motors and components for reliable, long-term performance. The motors are strategically positioned at the body’s natural pivot points, enabling their beds to support users in a “zero-gravity” comfort position, where the body feels weightless and the spine is neutrally aligned. The Heritage range, for example, uses multiple motors to achieve an infinite number of positions.

Adjustamatic offers both slatted and solid-base designs, engineered for smooth, quiet operation. Unique technologies are also incorporated; the Easy Reach® system, for instance, keeps the upper section of the bed close to the headboard even when elevated, ensuring your bedside table remains accessible. Many Adjustamatic beds can also include NHC Cyclo-Therapy® massage motors, using gentle multi-directional vibrations to ease muscle aches, promote circulation, and aid relaxation. All adjustments and features are controlled via an easy-to-use handset.



3. Types of adjustable bed base designs

The construction and materials of an adjustable bed base vary, affecting feel, durability, and price.

1. Slatted base: This design uses wooden slats across the frame to support the mattress. These slats are often slightly bowed and flexible, flexing under pressure. Some high-end slatted bases allow tension adjustment in different zones. Slats provide good mattress airflow and some additional spring. However, with frequent movement, slats can sometimes shift or wear. If they lose shape or spacing, the mattress might sit unevenly.
2. Solid base: A solid adjustable bed base is a flat, rigid platform (often wood or metal) jointed only where the bed bends. This could be a “platform top” style or occasionally a divan-style base (though traditional divan springs are not typically used in adjustable beds due to potential wear from movement). Solid bases offer robust, consistent support, with no risk of slats moving. Adjustamatic generally favours solid bases for their stability and longevity, often with upholstered divan-style exteriors. While they can feel firmer, they provide excellent body support.
3. Number of motors (sections): Adjustable bases can be classified by how many motors and jointed sections they have. Entry-level bases might have one motor for head control. More advanced bases have two, three, or even four motors for different segments (e.g., head, back, legs, foot incline). More motors allow greater flexibility in positioning.
4. Height-adjustable bases: A height-adjustable aka “autovariable” bed not only adjusts at the head/foot; the entire bed can be raised or lowered vertically. This type of bedis helpful for individuals with mobility issues or for caregivers, allowing the bed to be set at a convenient height for access or care. The Adjustamatic Autovariable Adjustable Bed exemplifies this, offering a wide range of positions plus vertical lift and even a forward tilt to assist standing.

4. Controlling your adjustable bed

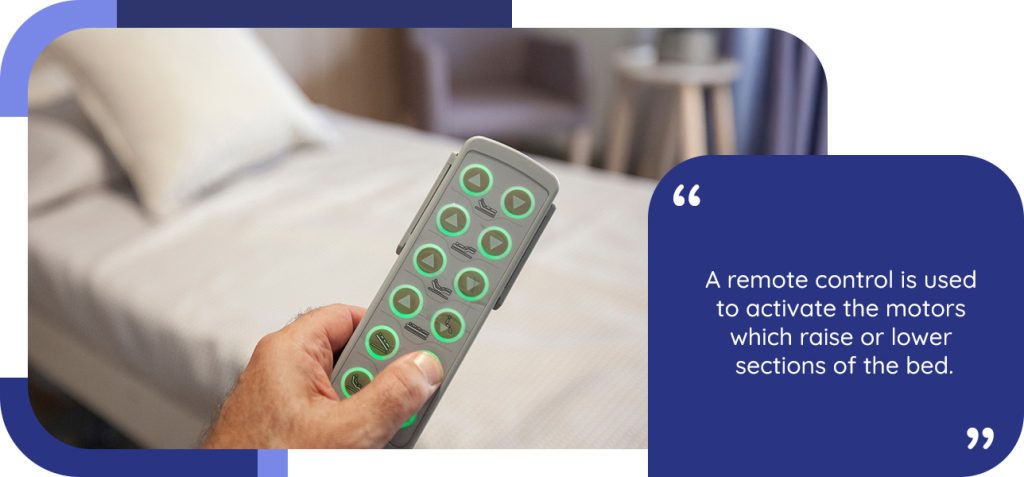

Modern adjustable beds are designed for ease of use, typically controlled via a handheld remote. This remote can be wired or, more commonly, wireless. All Adjustamatic beds use a wireless remote handset for convenience, eliminating tangled cords. Some advanced bases offer smartphone app or voice control, but a simple remote is often most straightforward.

The remote features buttons for different sections (e.g., “Head Up/Down,” “Legs Up/Down”) and often a one-touch “flat” button. Many controllers include memory preset buttons, allowing you to save favourite positions (like for TV watching or sleeping) and recall them with a single press. The Adjustamatic wireless handset allows saving up to three positions.

Remotes may also control extra features like massage systems (e.g., Adjustamatic’s NHC Cyclo-Therapy®), under-bed lighting, or overall bed height.

5. Sleeping positions and zero-gravity

Adjustable beds enable various therapeutic sleeping positions.

• Neutral supine position (zero-gravity): This position mimics astronauts during liftoff. It involves elevating the head slightly and raising the knees/feet, forming a gentle V-shape (torso and thighs at about 120°). This eliminates pressure points, allows the lower back to relax, and supports spinal alignment. It can reduce back pain and improve circulation. Many adjustable bases have a “Zero-G” preset.
• Fowler’s positions: These are semi-upright sitting positions. Low Fowler’s (~15–30° incline), Semi-Fowler’s (~30–45°), and High Fowler’s (60°+) can be achieved. Semi-Fowler’s is often recommended for reducing back strain, easing breathing, and aiding digestion. It can relieve snoring, mild sleep apnoea, or nighttime heartburn.
• Side-sleeping with leg elevation: Elevating the head and foot sections slightly can cradle the body for side sleepers. Lying on your side with knees drawn up (foetal position) while the head and foot ends are slightly raised can take pressure off the lower back and hips, beneficial for conditions like spinal stenosis or sciatica.
• Legs elevated above heart: Lifting the foot section high helps blood flow back to the heart, reducing swelling in feet/ankles and improving circulation for conditions like varicose veins or oedema. It also relieves lower back pressure.

The ability to customise combinations means you can discover the precise bed shape for maximum comfort. For couples that share a bed, split adjustable beddesigns allow independent adjustment of each side.This flexibility is a huge benefit for couples with different sleep needs. For instance: you can have your half of a king-size bed propped up while your partner’s side lies flat.

6. Mattress compatibility

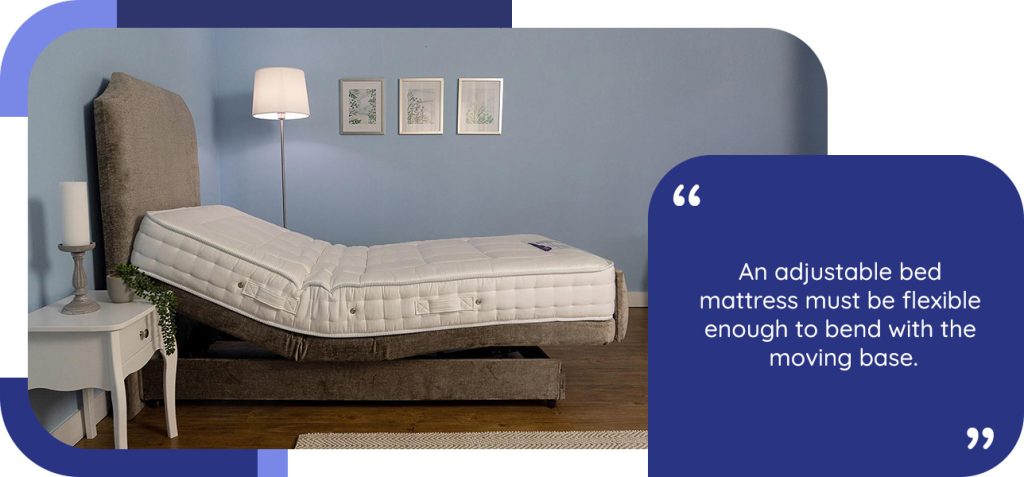

A crucial consideration is mattress compatibility: your adjustable mattress must be flexible enough to bend with the moving base. Standard mattresses, especially traditional innerspring types with connected coils or stiff construction, are often too rigid and can be damaged or feel uncomfortable.

The best mattresses for adjustable beds are typically memory foam, latex, or advanced hybrid mattresses specifically engineered to flex. These materials are pliable and can return to a flat position without losing shape. They also lack internal border rods or hard glue layers that could crack. Adjustamatic offers specialised adjustable bed mattresses like the AirFlow® orthopaedic mattress, designed to maintain support even when contoured.

Pocket-sprung mattresses can work if labelled adjustable-friendly (usually with smaller, flexible pocket springs). Always check manufacturer advice. A good rule of thumb: if you can bend the mattress into a slight U-shape by hand without much resistance, it’s likely suitable for an adjustable bed. If it resists or you hear creaking, it’s probably not ideal.

Mattress thickness is also a factor; very thick mattresses (e.g., over 14 inches) might not flex easily. Most adjustable bed mattresses are 8–12 inches thick.

Pairing your adjustable base with a quality adjustable mattress ensures the system works seamlessly and lasts for years. Using an unsuitable mattress can undermine comfort and risk damaging both the mattress and the base’s motors.

7. Using an adjustable base with a bed frame

It is often possible to fit an adjustable bed base inside an existing decorative bed frame, but several factors must be considered. Many adjustable bases are standalone units with their own legs. However, some are designed as “drop-in” compatible, with removable legs, allowing them to sit inside a traditional frame.

Adjustamatic bases are complete units with integrated frames.The upholstered sides make them look like a normal divan bed; they typically do not require a separate furniture frame.

Key considerations for using an adjustable base with another frame include:

• Size fit: The adjustable base must be the correct standard size to nest into your frame. Adjustable bases are usually made slightly smaller than standard mattress dimensions to fit without scraping.

• Frame type: Ideally, the existing frame should have a solid platform or closely spaced slats for adequate support.Some adjustable bases include brackets or “hanger” attachments to secure them inside a wooden frame and prevent sliding.

• Headboards/footboards: Many adjustable bases, including Adjustamatic’s, have brackets for attaching standalone headboards.
• Height clearance: Ensure enough clearance for the base’s moving parts. Some bases are “zero clearance” designs, meaning they can sit flat on a platform without their own legs– these are intended for use on platform frames or within other beds.

If this seems complex, Adjustamatic’s integrated frame design simplifies the process. If you wish to use a particular existing frame, our team can provide the guidance you need.

8. Summary and tips for buyers

An adjustable bed base is an investment in comfort and health. Key points to consider when shopping:

• Know the benefits: Adjustable beds improve sleep by supporting better posture and reducing spinal pressure. They can help with back pain, poor circulation, and snoring.
• Choose the right base type: Decide between basic (e.g., single-motor for head elevation) and advanced (multi-motor for independent head/foot/height adjustments). Solid bases are generally recommended for longevity.
• Check weight capacity and motor quality: Ensure the model supports the combined weight of users and mattress. Look for good warranties on motors and frames; Adjustamatic offers up to a 15-year guarantee on frames.
• Don’t forget the mattress: Pair your base with a compatible, flexible mattress (memory foam, latex, or suitable hybrids).
• Consider added features: Prioritise features you’ll genuinely use (e.g., massage, memory presets, USB ports) based on your comfort and health needs.
• Measure your space: Ensure the bed fits your room and allows clearance for movement.
• Test if possible: Try an adjustable bed in person. Adjustamatic offers home consultations.
• Reliable support and setup: Purchase from a company offering good customer support, delivery, and professional setup.

9. Put your new knowledge into practice

Now that you understand the mechanics and benefits behind adjustable bed bases, are you curious to experience firsthand how these sophisticated systems can transform your daily comfort? Understanding how something works is one thing—feeling the difference it makes is quite another.
